Place of Origin : Guangdong, China
Brand Name : Suoneite
Model Number : 6200W
Input Voltage : 230VAC
Output Voltage : 230V AC±5%
Output Current : 15.2A AC
Output Frequency : 50/60(HZ)
Output Type : Single
Size : 420*310*110mm
Type : DC/AC Inverters
Inverter Efficiency : 98%
Certificate : CE/ISO9001
Warranty : 1year
Weight : 11kg

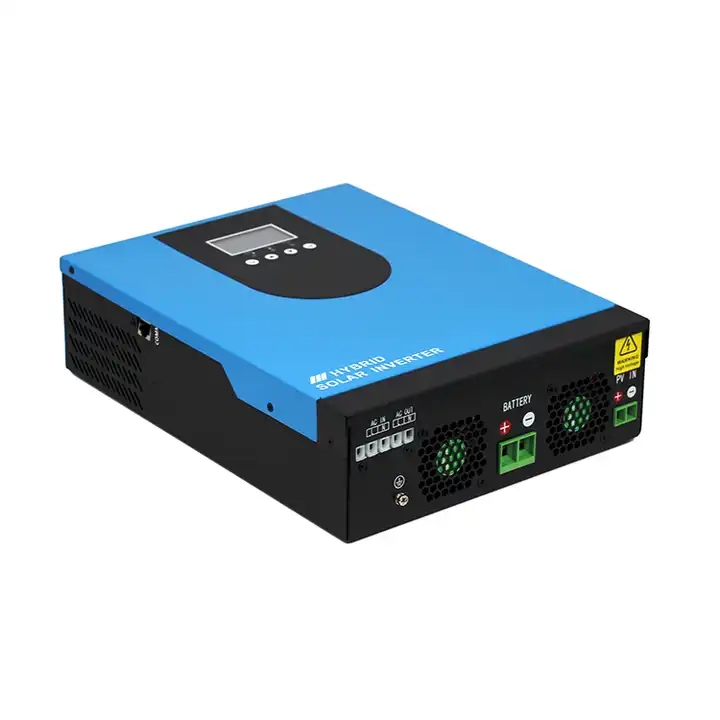

Product name : Hybrid Solar Inverter
Application : Home Appliance
Inverter type : On-grid Solar Power Inverter
Battery type : Lead Acid \ Lithium \ Gel
Protection : Overload
Keyword : Inverter Solar
Color : Customized Color
OEM : Accepted

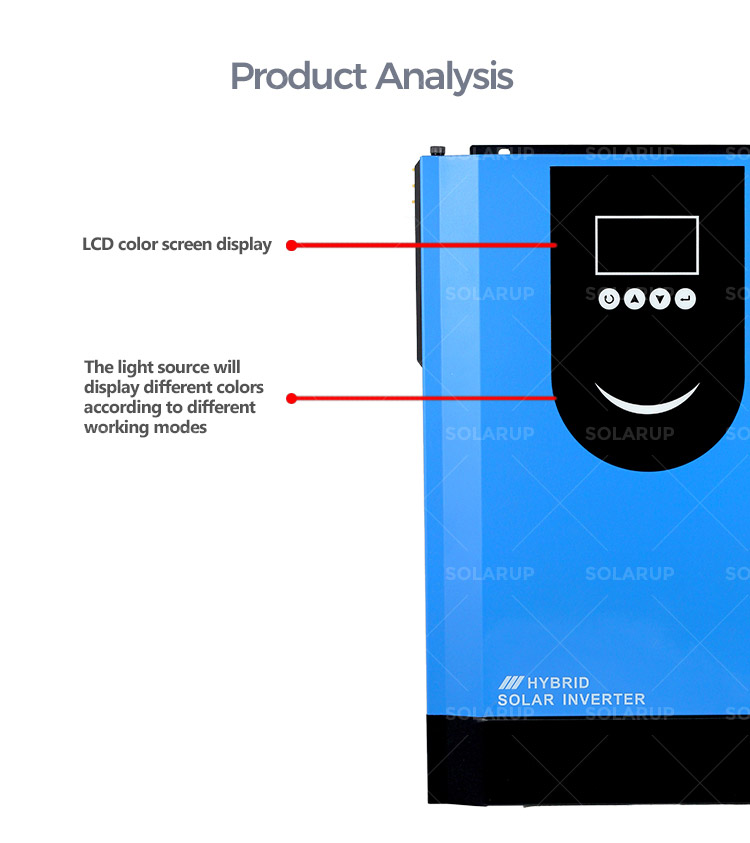

Display : LCD Display
Controller type : MPPT Solar Controller
Packaging Details : We will according your product select the most suitable packaging according to the quantity.
Price : $269.50/boxes 1-299 boxes
MODEL | SY3.6K | SY4.2K | SY6.2K | ||||
Maximum PV Input Power | 6200W | 6200W | 6500W | ||||
Rated Output Power | 3600W | 4200W | 6200W | ||||
Maximum Solar Charging Current | 120A | 140A | 120A | ||||
GRID-TIE OPERATION | |||||||
PV Input(DC) | |||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||||
Maximum DC Voltage | 90~450VDC | ||||||
Number of MPPT Trackers/Maximum Input Current | 1/27A | ||||||
GRID OUTPUT(AC) | |||||||
Nominal Output Voltage | 200/230/240VAC | ||||||
Output Voltage Range | 195.5~253VAC | ||||||
Nominal Output Current | 15.7A | 18.2A | 27.0A | ||||
Power Factor | >0.99 | ||||||
Feed-in Grid Frequency Range | 59~61±1Hz | ||||||
EFFICIENCY | |||||||
Maximum Conversion Efficiency ( Solar to AC) | 98% | ||||||
TWO LOAD OUTPUT POWER(V2.0) | |||||||
Full Load | 3600W | 4200W | 6200W | ||||
Maximum Main Load | 3600W | 4200W | 6200W | ||||
Maximum Second Load ( battery mode ) | 1200W | 1400W | 2067W | ||||
Main Load Cut Off Voltage | 22VDC | 22VDC | 44VDC | ||||
Main Load Return Voltage | 24VDC | 24VDC | 48VDC | ||||
OFF-GRID OPERATION | |||||||
AC INPUT | |||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||||
Maximum AC Input Current | 30A | 30A | 40A | ||||
Nominal operating frequency | 50/60Hz | ||||||
Surge power | 7200W | 8400W | 12400W | ||||
BATTERY MODE OUTPUT ( AC ) | |||||||
Nominal Output Voltage | 24VDC | 24VDC | 48VDC | ||||
Output Waveform | Pure sine wave | ||||||
Efficiency ( DC to AC ) | 94% | ||||||
BATTERY & CHARGER | |||||||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC | ||||
Maximum Charging Current ( Solar to AC ) | 120A | 140A | 120A | ||||
Maximum AC Charging Current | 100A | ||||||
GENERAL | |||||||
PHYSICAL | |||||||
Dimension, D X W X H (mm) | 420*310*110 | ||||||
Net Weight ( kgs ) | 10 | 11 | 11 | ||||
INTERFACE | |||||||
Communication Port | RS232/WIFI/GPRS | ||||||
ENVIRONMENT | |||||||
Operating Temperature | -10~50℃ |
![]() |
